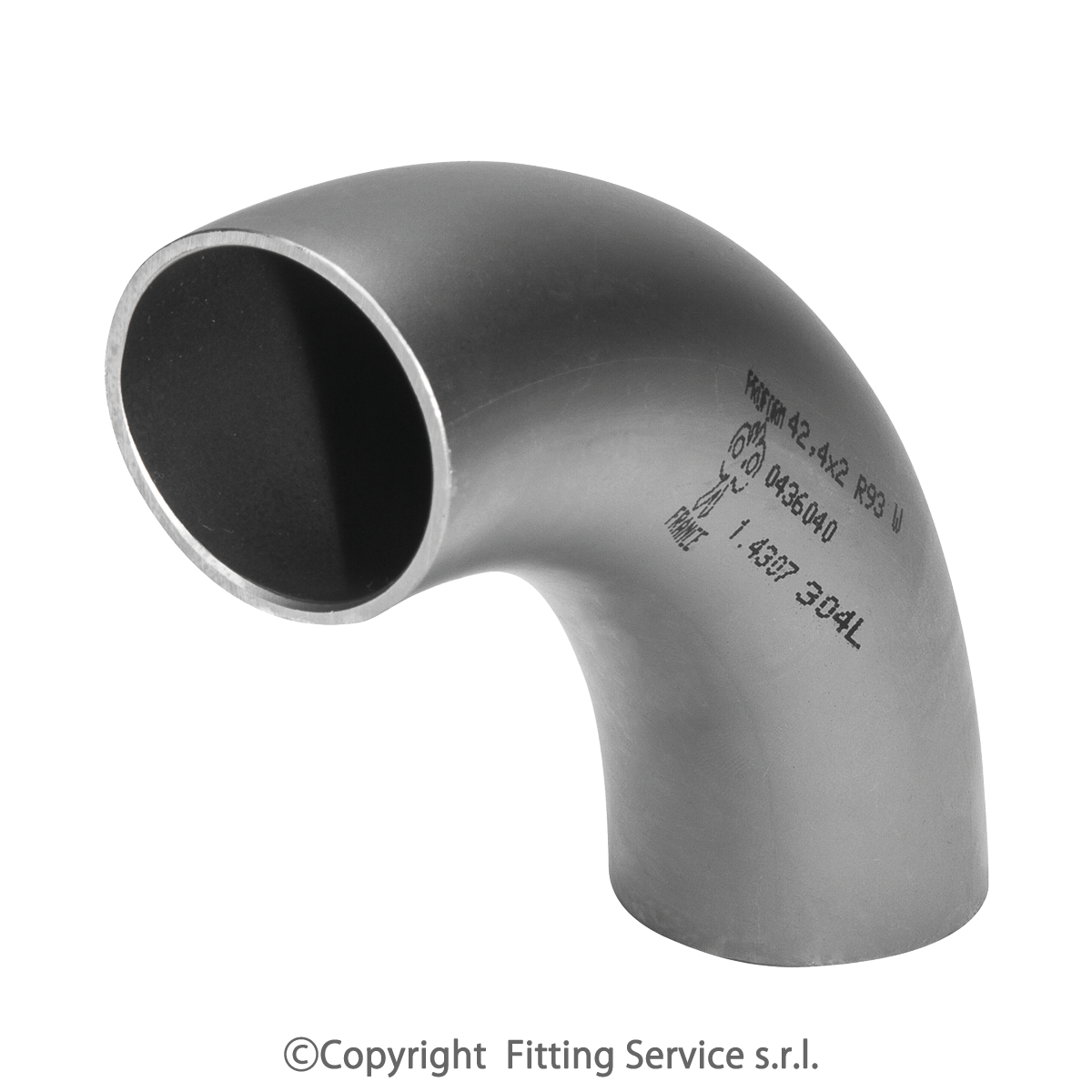

  3. Elbow 90° 5D (welded)

Elbow 90° 5D (welded)

Elbow 90° 5D (welded)
code 302

The welded elbows 5D (radius two and half diameter) are used to divert the flow of the pipes. 5D-welded elbows are useful  to transport granular materials and powders. In France this type of elbow is also called coude grand rayon.

  • EN10253
  • Aisi 304L EN 1.4307 - Aisi 316L EN 1.4404
